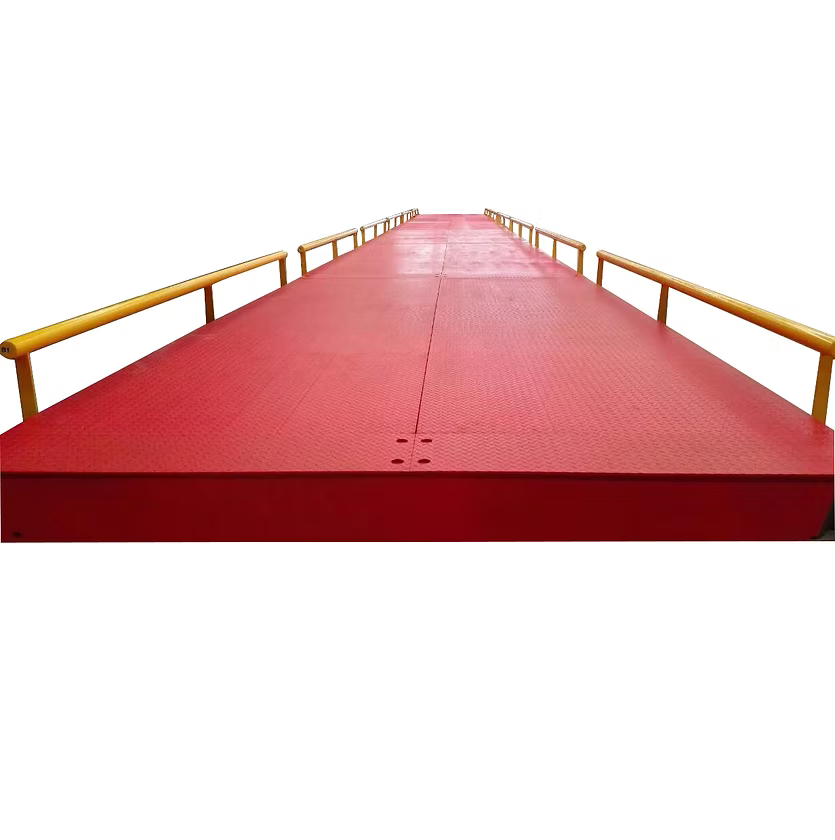

Bascula camionera con puente de acero modular MT-RLS Digital

• 3/8” tread plate decking for increased durability and strength
• Supported by orthotropic ribs that are completely sealed by continuous welds
• Built with an airtight seal that eliminates the potential for rusting from the inside
• The ribs are shaped to distribute concentrated loads better than I-beam designs, for a longer life
• Interchangeable modular design
• Each scale is built in a fully rotatable clipping to ensure proper fit and finish
• Rotation of the scale module during assembly guarantees uniform and precise welds
• Each module has as few as 6 bolts compared to 40 on all other modular designed scales
• The platform is designed with special tabs and wheels for easy loading and unloading, especially when shipping with box trucks
• Baked powder coated finish all over, proven to be as much as 10 times more effective in resisting wear and corrosion in the roughest environment
• Contains no solvents and is safe in operation and environmental friendly with zero pollution

Specifications

• Gross Capacity:
  Up to 135 Tons

• Width: 10’ to 14’

• Length: 10’ to 140’

• Module Length: 10’ to 18’

• Deck Height: 14” (low profile availiable)

• Deck Plate Thickness:  3/8” or 1/4"

• Weighbridge End plates: 3/4” x 11” plate

• Inner Supports:
   6 per module

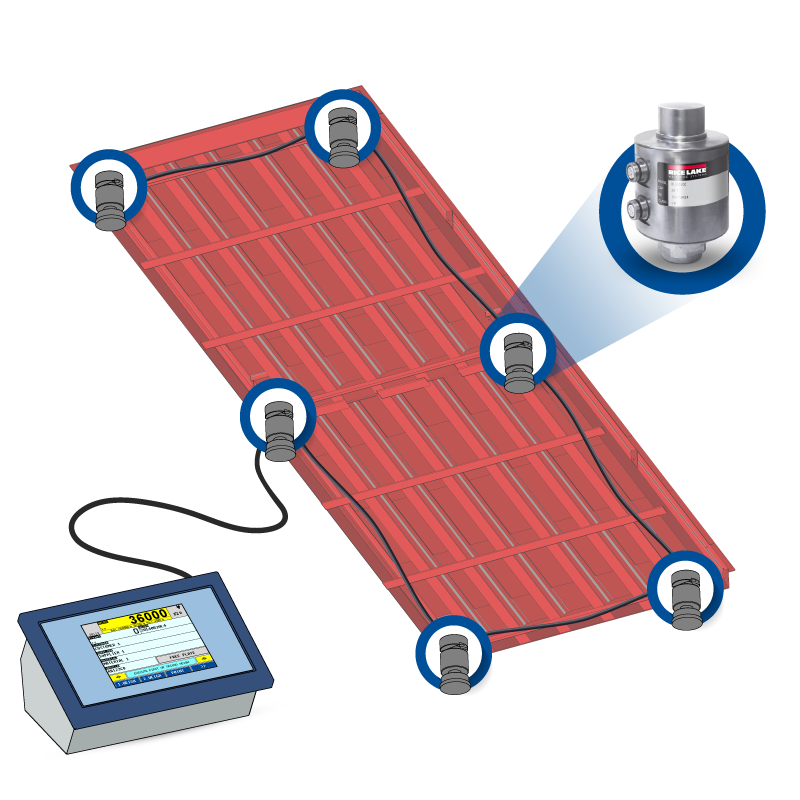

• Load Cell Type: Double ended, analog, NTEP alloy steel
  (Stainless steel optional)

• Load Cell Output: Analog - mV output

• Load Cell Cable:
  Stainless steel sheathed cable

• Junction Box: NEMA 4X stainless steel, cable strain reliefs

• Summing Card: 4-10 cell boards with surge protection & sectional adjustment

• Finish: Baked primer and baked color powder coating

• Installation Type: Above or in-ground

• 5 years covering weighbridge, junction box and load cells

• Certification: NTEP, Class III L, CC# 17-034
